First and foremost, it is crucial to understand that you have the option to create and send each consignment separately.

This guide will walk you through the process of creating, connecting, and sending the consignments to customs from start to finish.

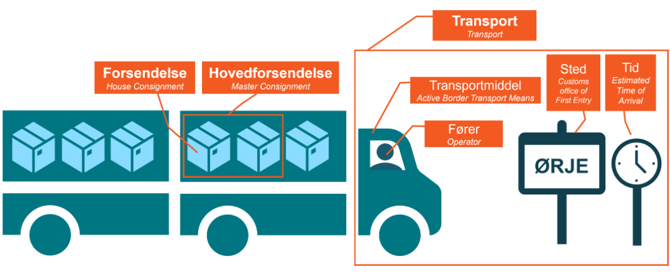

As outlined below, there are three types of consignments to be created. A House Consignment that represents each declaration individually.

Next, a Master Consignment where all House Consignments will be linked to. You have the flexibility to link multiple houses to one Master, or opt for a one-to-one House and Master connection based on your operational preferences.

Lastly, a Transport Consignment is required to connect the Master and provide information about the transport and border crossing.

Snag_229027e

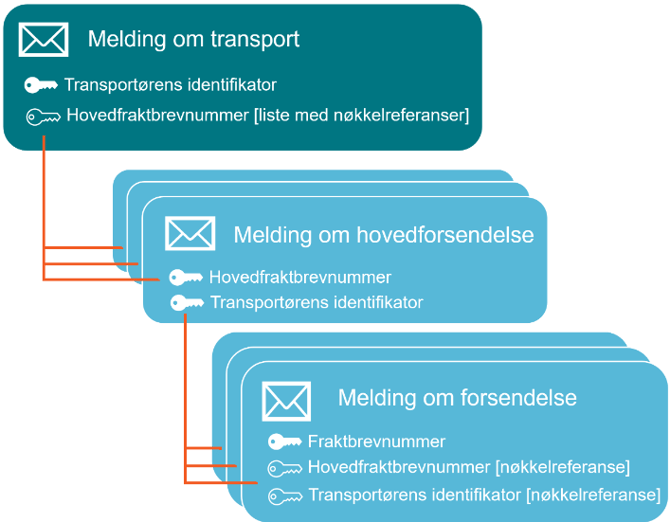

The key element that ties all the consignments together is the Master Waybill and Transport Identification (EORI number). It is essential for these to be consistent and present on all consignments.

Please include the Carrier EORI in the markedsbase under the "More IDs" section.

Snag_229078f



Master Consignment:

Ensure that the Master consignment is selected in the type field:

Dekl. ID: This is the consignment number generated from the system.

Reference: It is optional to use any preferred reference. Otherwise, it will default to Dekl ID + user's signature.

Snag_241d114

Transport status: The MRN and status will be generated and sent by customs.

Snag_241b418

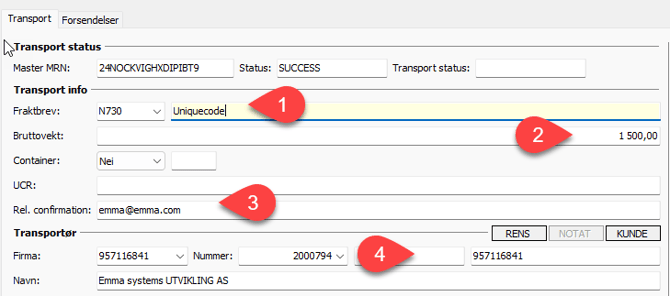

Mandatory fields:

  1. Waybill: Select a code from the dropdown menu and enter a reference number. This number is one of the keys to connecting the consignments at the customs side, so it must be unique.
  2. Gross weight: Enter the total weight for all house/declarations being declared.
  3. Release Confirmation: Specify the email address where the release confirmation should be sent.
  4. Carrier: Input the carrier's name, address, and contact information. Include the identification (EORI number), which is the second key for connecting the consignments.


    Snag_241b417
  5. Representative: Provide details about the representative, including VAT number, full address, phone number, and email address. Usually this is your company
  6. Consignor and Consignee: Enter the  Consignor and consignee. Name and adress. this could be the actual cnr/cnee or your company.
    Snag_241b407

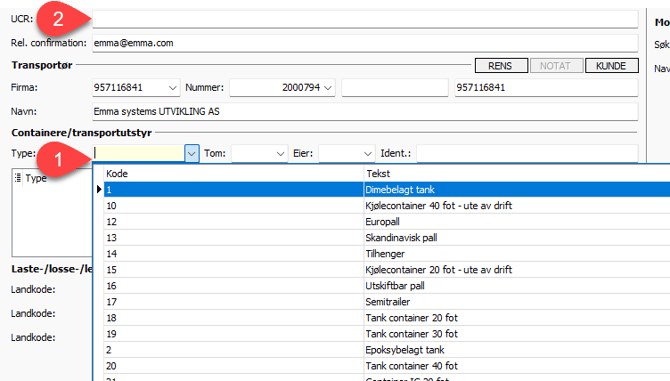

Container/equipment field is only required if you transport in a ISO container or trailer.

UCR, and loading/unloading place is optional.

Snag_241b3f7

Next we are ready to connect our house consignments.

Click on the shipment sub tab and  then click on connect shipments.

Snag_241b3e8

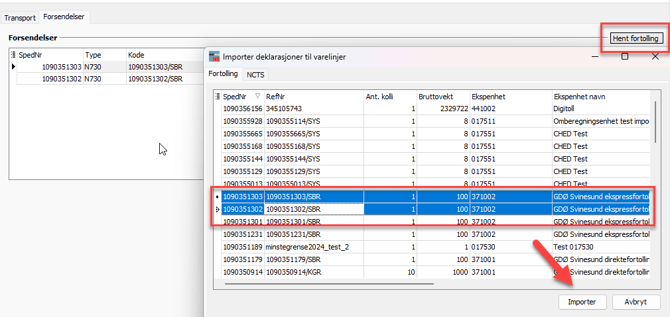

Here you can search or mark as many as you need and click import.

Snag_241b3a9

Now we are ready to send our master consignment - click on the INS=send button.

You will then be prompted to confirm whether you would like to send the house consignments as well. Please select "Yes" to proceed with sending both the Master and the connected house consignments for all declarations.

Snag_5d06c24

Refer to the guide for information on the status and process of sending MO consignments.

Digitoll - MO status and sending



House Consignment:

For a standalone house consignment creation, refer to the House Consignment guide.

If the declaration is connected to the master consignment and you select "Yes" to generate a house consignment, the house consignment will automatically gather the mandatory data from the master and the TVINN declaration.

From the Master Consignment, the system will automatically populate the Master Waybill number and Carrier information. Additionally, the TVINN declaration will auto-fill all mandatory fields listed below, provided that the relevant information has been entered in TVINN.

Snag_5d06c41



Please take note of the mandatory fields listed below and ensure to provide any missing information as required.

Mandatory fields:



Waybill: Master waybill number from your master consignment, and a waybill for your house consignment. we have used spednr and user as default.

Gross weight: The total weight and collies from the customs clearance

Transport equipment: Container Yes/no

Description of goods: Description/name of the goods

Carrier: Name and EORI number field requires a value

Snag_273258f

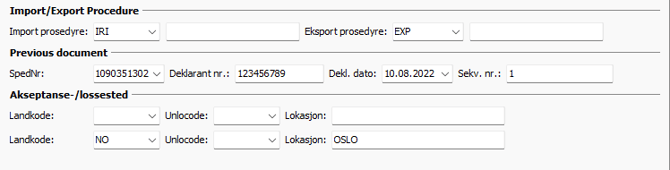

Import/Export procedure: Depending on which import/export procedure is used.Ex: Import procedure IRI and export procedure EXP; then enter the import clearance below, the export is entered in the Previous document tab.

Snag_273259f

Representative: Provide details about the representative, including VAT number, full address, phone number, and email address. Usually this is your company

Consignor: Sender of the customs declaration - The organization number field is required.

Consignee: Recipient of the customs declaration – Organization number field is required.



Snag_27325ae

Transport Consignment:

To begin, click on F5=Rense, then make sure to select Transport Consignment in the Type field.

Snag_27b3caa

Enter the mandatory fields as follows:

Carrier: Include the name and VAT number, which should match those used on the master and house consignments.

Vessel: Provide the identity number, specify the type with a code, indicate the nationality, type of vessel, and mode of transport.

Operator: Input the name and contact information.

Arrival: Fill in the expected arrival date and time, and use the same dat/time for the scheduled arrival, and specify the customs office for border crossing.

Snag_27b3cba

Representative: Include details about the representative, such as the VAT number, full address, phone number, and email address. Typically, this would be your company.

Snag_27b3ce9

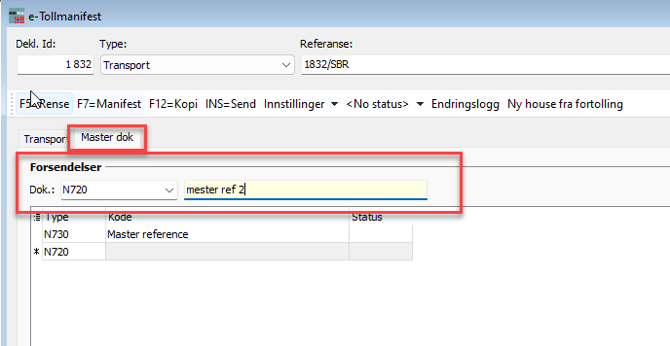

In the master dok tab, add the Master Waybill number used on the master and house consignments. You can add multiple Master references to a transport.

Snag_27b3cea

Once all information is provided, click on INS=send to submit to customs.

Functions and Setups: in progress

Add default values:

To add default values to your manifests, utilize the F9 function. It is important to add these values in a new, unsaved manifest for them to apply to future manifests. Begin by opening the manifest where you want to add default values. Navigate to the desired field, for example, the representative field. Press F9, then enter the default value in the designated field. click save.

Snag_86b6fa52

Snag_86b6fa61

You also have the option to access the matrix editor from the settings menu.

The default values will be applicable to all users.



How to make changes, or cancel a manifest:

If you need to make changes or cancel the manifest, simply open the manifest and select "reopen manifest" or "cancel" from the dropdown menu under the success status.

After making any amendments, you can resend by clicking on "INS" again..

Snag_86c23fe1

If adjustments are needed to the vessel/truck on the transport manifest, you will have to cancel the current manifest and submit a new one. A convenient approach is to reuse the existing data by using F12=kopi, updating the truck information, and then sending it. Remember to cancel the old transport manifest before proceeding with the new submission.
